Mount Sopris offers WellCAD™ log acquisition and processing software, the most intuitive and comprehensive user interface in the industry. Combining excellent display, editing and analysis capabilities, WellCAD™ has become the standard log composite software in mining, natural resource, geotechnical, and other communities. WellCAD is a trademark of Mount Sopris partner, Advanced Logic Technology.

WellCAD™ 5.6 is now Released!

The basic WellCAD™ Version 5.6 package includes WellCAD Reader and Crossplot modules, and incorporates all features and tools necessary to import, edit, process and display your Well data. The software is delivered with a set Templates, Header, Dictionaries customized for specific application. You can easily modify existing ones or create you own. Single-user licenses, as well as network licenses available. For more information on licensing types, please see the Licensing Options document.

Find out What’s New in WellCAD™ 5.6!

Wellcad-V5.6-Release-Notes

Software Summary

Since its first release in 1993, WellCAD™ has become a valuable tool for thousands of geoscientists dealing with borehole data. WellCAD™ handles the entire data loading, log editing, analysis and presentation workflow for drilling, wellsite, core and logging data – independent of the industry sector.

The modular architecture of WellCAD™ allows users to easily activate advanced modules to build a package tailored to their requirements and make it an attractive solution for small scale companies as well as large multinational corporations.

(USB dongle for 32/64 bit version of WellCAD™, installation CD, documentation)

WellCAD Composite well log processing

Product Overview

Rich Graphical Display

Fully graphical driven standard Windows* software
Real-time data display generated from the depth / time based information held in the data repository
Display of curves, patterns, symbols, text, formation markers, image data, photographs,…
Comprehensive sets of formatting styles (point, bar, curve style, color, thickness, fonts, shading,…)
Editor for custom symbols, patterns, header & trailer design
3D Borehole Display

Comprehensive Interpretation Tools

Common Data Processing Tools : resampling, filtering, single-, block- or multi curve statistics, equation editor,…
Specialized Workspaces for Image & Structure Interpretation, FWS data, core description, multi-well correlation,…
Cased Hole Interpretation Workspace (available in 2016)
Cross plotting workspace and chart log
Application Programming Interface for batch processing scripts or advanced algorithm development

Intuitive Data Management

Choose from 28 different data container types to host single point, interval or array data
New intuitive user interface to manage data and properties
Powerful templates for automatic plot formatting
Alias tables for mnemonic management and standardization
Automatic audit trail of changes made to each data container

Mobility

WellCAD works on PCs, laptops and tablets with Windows OS (32 and 64bit compatible, supported by Windows XP, Vista, 7, 8, 8.1 and 10)
Completely portable through hardlock protection or server license borrowing
Does not require a connection to a database system

Global Support Team

Rely on effective support from the WellCAD team and partners in offices worldwide

Data presentation

Display of curves, patterns (e.g. lithology), symbols (e.g. fossils), text, formation marker, hierarchical stratigraphic columns, image data (e.g. FMI, ATV, OTV), photographs, operational symbols (e.g. DSTs, RFTs, Mud Data, Survey Data, etc.), …
An unlimited number of data containers, of which 28 different types exist to host single point (continuous and discontinuous), interval or array data, can be freely positioned on the workspace and combined for complex WYSIWYG plot formatting.
Audit trail for each data container and processing step (i.e. Log History).
No restriction to number of tracks or number of curves to be plotted or superimposed.
Comprehensive sets of formatting styles are available for each data container type – pen type, pen thickness, pen color, fonts, shading, curve style (e.g. point-to-point, step or bar) and many more.
Scale and appearance of vertical grids can be customized using individual classification schemes (e.g. Wenthworth scale, Phi scale).
Depth may be referenced to MD, TVD, TVDSS or any other depth (or date & time) system due to capabilities of non linear depth matching. Support of depth and elevation display.
Libraries of customizable and scaleable patterns and symbols (e.g. lithology, physical structure, fossils, pore types, …) are provided. The freely distributed LithCAD application allows design and import of new patterns and symbols.

Dips Workspace (Polar/Rose/Stereonet)

Data Management

Data Formats – Import (LIS, DLIS, LAS, ASCII, EXCEL, WITSML, JPEG, AGS,…)
Data Formats – Export (LIS, DLIS, LAS, ASCII, CGM, JPEG, EXCEL, Petrel compatible ASCII,…)

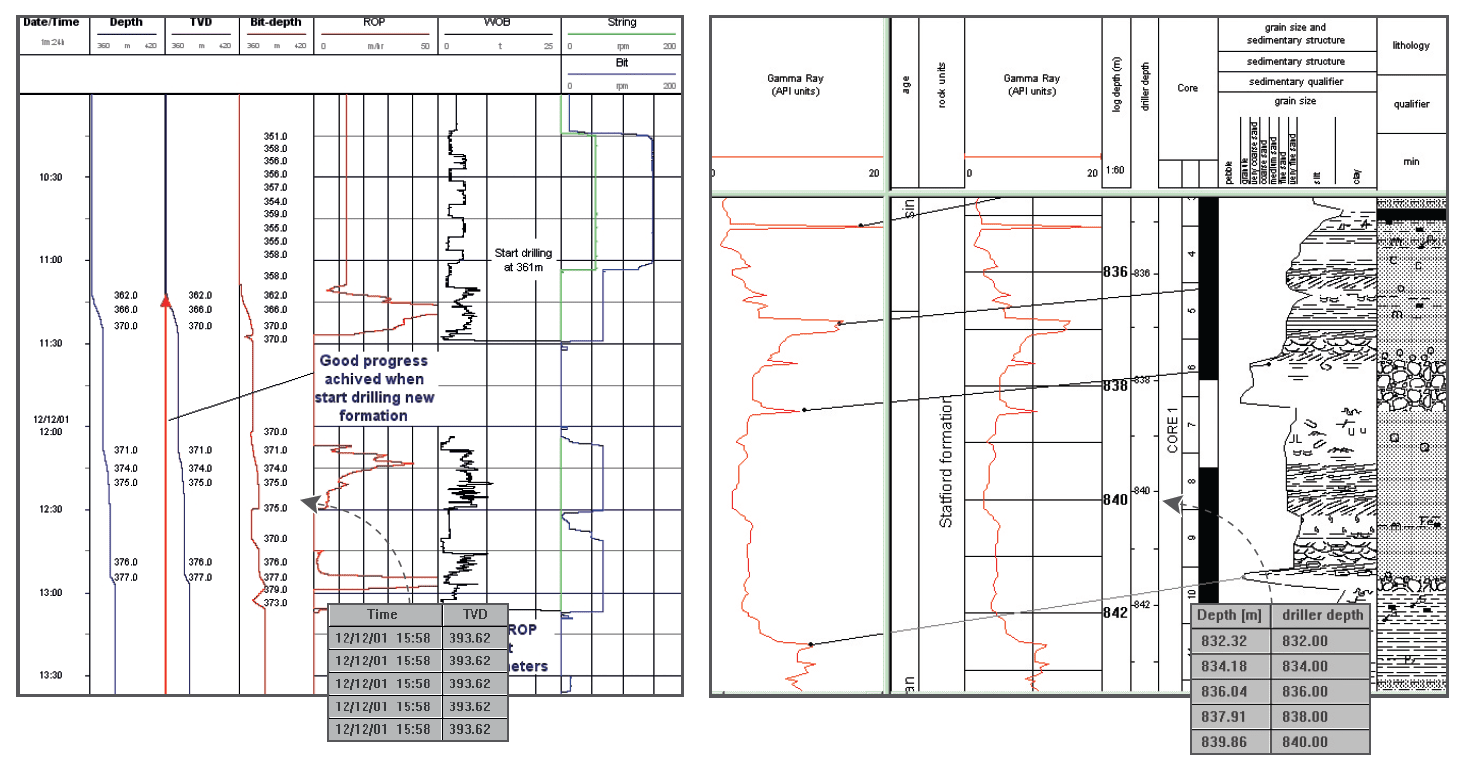

Depth Management

Multiple Depth Management

WellCAD™ provides a multiple depth management system (date/time, depth, TVD,…). The depth matching tool allows you to fine tune your data (e.g calibrate core description data to the wireline logs). All correlations will be saved in a new depth log helping you to assess the match.

Cross Plot Workspace

Interval Statistics

Data Interpretation

Cross plotting workspace (up to 4 components, clustering, overlay and regression options).
Chart Log for cross plots, ternary diagrams and histograms as part of the report.
Workspace for dip data (rose, polar projection, walkout and woodcock diagrams).
Tracking and statistic bars for interactive determination of statistical information.
Interval and multi-log statistics.
Interactive input and editing of data (in spreadsheet editor and graphic layout).
Sophisticated annotation options including operational symbols for wellsite geologists.

WellCAD processing spectral gamm data for thorium potassium and uranium

Spectral Gamma Processing

Common processes

Filter, resampling and data interpolation options.
Custom equation editor
Zonation
Computation of borehole deviation data (azimuth, tilt, northing, easting, TVD and more).
Borehole condition corrections.
Total & spectral gamma processing (window stripping and full spectrum analysis).
Borehole volume calculations.
Multi log statistics.

Annotations and Operational Symbols

Annotations (arrows, text or bitmap callouts,…) and a large number of specific operational symbols (oil & gas shows, sidewall cores, RFT/MDT/pressure test, casing data, …) can be added to the graphical report by drag & drop or using the annotation editor. All annotations and operational symbols have real data assigned to it and can be imported or exported.

How to add annotations in WellCAD

Additional processing and analysis modules include:

Image & Structure Interpretation (ISI) workspace for image processing.
FWS (Full Waveform Sonic) Module for Sonic log processing, semblance, CBL, etc.
Multiwell Module for fence diagrams, log cross-sections, etc.
Deviation Module for 3D deviation plots.
CoreCAD Module for wellsite logging of cuttings and drill bit returns.
LIS/DLIS Import-Export Module for FMI data import & export.
Automation Module for enhanced data processing.
Browser Module for real-time logging into WellCAD Window.

Mount Sopris fully supports WellCAD users with our Support & Maintenance package. Please review these Frequently Asked Questions to learn more!

Please Contact Us if you are interested in a Demonstration version of WellCAD.

To Download Version 5.5 please visit the ALT Download page.

To Purchase Upgrades to the latest version or Purchase New Software or Modules, please visit our Online Store.

To Download Older Versions of the WellCAD software, please contact tech.support@mountsopris.com.

Download the Complete WellCAD Brochure Here.
