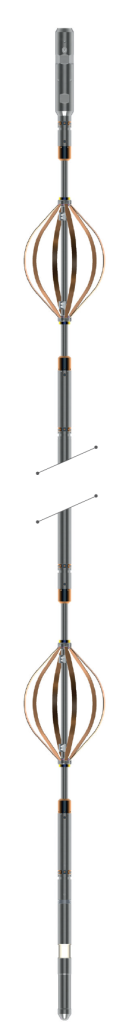

QL43-ABI
Acoustic Televiewer
High temperature acoustic borehole imager
Description
The QL43-ABI is the most compact high-resolution ultrasonic imaging tool available in the wireline logging industry. Based on more than 20 years of experience and market leadership with ultrasound technology, the QL43-ABI consists of a state-of-the-art electronics and sensors designed to meet the oil & gas industry standards. The electronic architecture uses a super fast digital signal processor performing complex data processing operations in real time on each individual ultrasonic wave train. Its wide dynamic range of signal detection and its easy field operation offer a large variety of logging applications.
Applications
Fields of application
- Mining & mineral exploration
- Geothermal energy
- Geotechnical projects
- Water industry
- Oil & gas
Applications in details
OPEN HOLE
- Geological structure identification and orientation
- Lithology and mineralogy characterization
- Stratigraphic analysis
- Core orientation
- Stress field analysis (breakout and borehole deformation analysis)
- Caliper information
- Rock strength
CASED HOLE

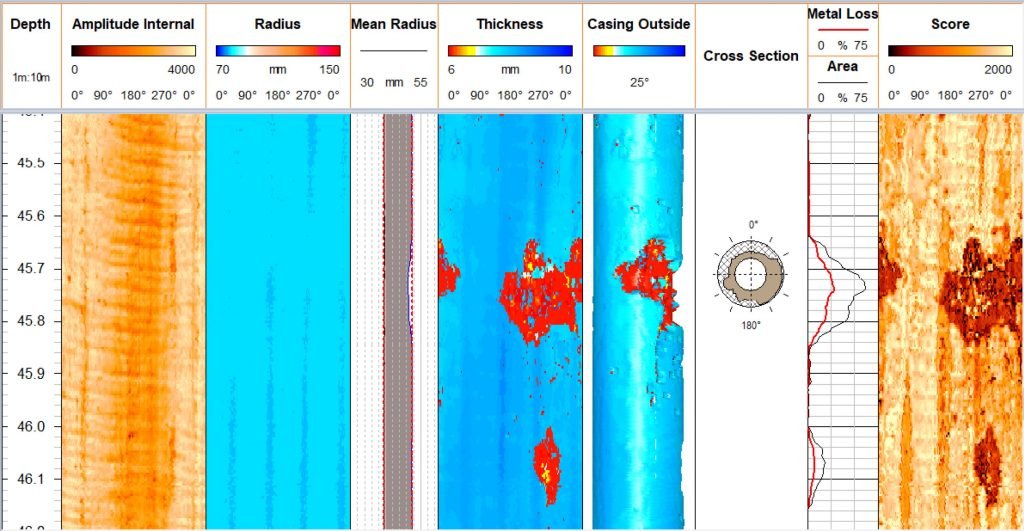

- Casing integrity: internal and external inspection of casing/tubing (corrosion, wear, perforations, scale deposits, deformation analysis)
- Inside and outside casing/tubing diameter
- Direct measurement of casing and tubing thickness
- Metal loss
Downloads
-
QL43-ABI Manual PDF
Technical Specifications
Cartridge
- Diameter: 43 mm - 1”11/16
- Length: 1.45 m - 4.8 ft
- Weight: 6.2 kg - 13.7 lbs
- Max. Temp: 170 °C – 338°F
- Max.Pressure: 700 bar – 10,000 psi
Orientation sensor
- Sensor: 3-axis fluxgate magnetometer 3 accelerometers
- Location: Mid point @ 1.66 m from tool bottom
- Inclination accuracy: +/- 0.5 deg
- Azimuth accuracy: +/- 2.5 deg
Operating conditions
- Centralisation: Always required
- Borehole fluid: Water
- Water based mud
- Brine
- Pure oil (not applicable in oil based mud)
- Cable type: Mono conductor
- Multi-conductor
- Coaxial
- Acquisition system: OPAL SCOUT-PRO
Acoustic heads
- Acoustic sensor: Fixed transducer and rotating focusing mirror
- Focusing: Collimated acoustic beam
- Frequency: 1.2 MHz
- Acoustic beam width: 3 mm @ focal distance
- Mirror rotation speed: Up to 20 rev/sec - automatic
- Azimuthal resolution: 72 – 144 or 288 (user defined)
- Caliper resolution: 0.08 mm
OPEN HOLE & CORROSION QL43 ABI HEAD OHCO-L
Application:
- Open Hole: up to 21” depending on borehole conditions
- Cased Hole: 5”1/2 to 15” with a minimum of 5mm casing thickness
- Max. Temp. Open Hole: 170°C – 338°F
- Max. Temp. Cased Hole: 150°C – 302°F
- Max.Pressure: 700 bar – 10,000 psi
- Weigth: 2.8 Kg – 6.2 lbs
- Length: 0.48 m – 1.57 ft
CORROSION SMALL FOCUS QL43 ABI HEAD CO-S
Application:
- Cased Hole: 3” to 5”1/2 with a minimum of 3mm casing thickness
- Max. Temp. Cased Hole: 150°C – 302°F
- Max.Pressure: 700 bar – 10,000 psi
- Weigth: 2.8 Kg – 6.2 lbs
- Length: 0.51 m – 1.57 ft
CORROSION – EXTRA SMALL FOCUS QL43 ABI HEAD CO-XXS
Application:
- Cased Hole: 2”7/8 with a minimum of 3mm casing thickness
- Max. Temp. Cased Hole: 150°C – 302°F
- Max.Pressure: 700 bar – 10,000 psi
- Weigth: 2.8 Kg – 6.2 lbs
- Length: 0.51 m – 1.57 ft
Real time acquisition and processing options
ALT systems are delivered with LoggerSuite and WellCAD® software package to handle data acquisition, real-time visualisation, log editing, log analysis and presentation workflow. The modular architecture of WellCAD® allows users to easily activate add-on modules and workspaces for advanced processing.
More specifically, the following modules and workspaces are recommended with the QL43-ABI:

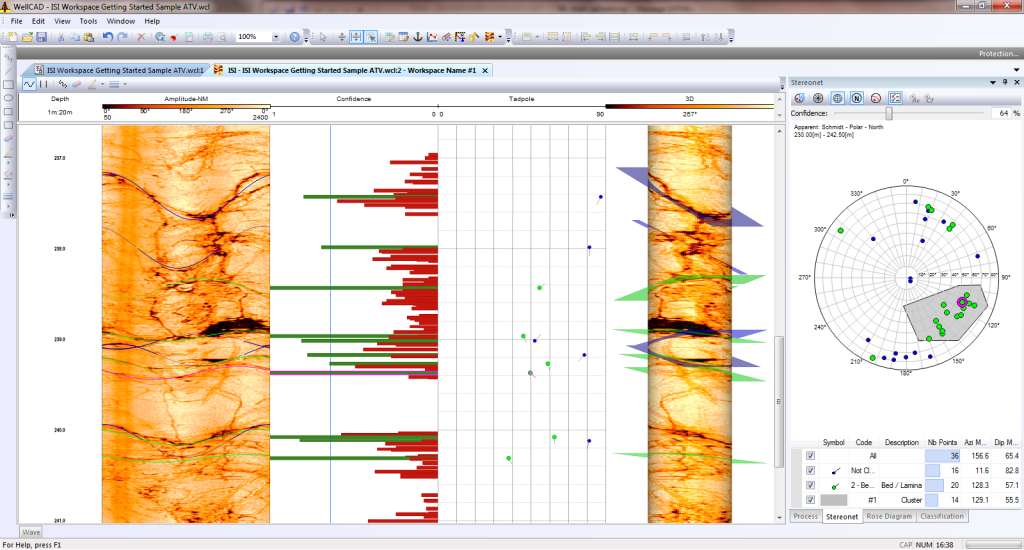

- Image and Structure Interpretation (ISI) workspace
- Cased Hole Ultrasonics (CHU) workspace

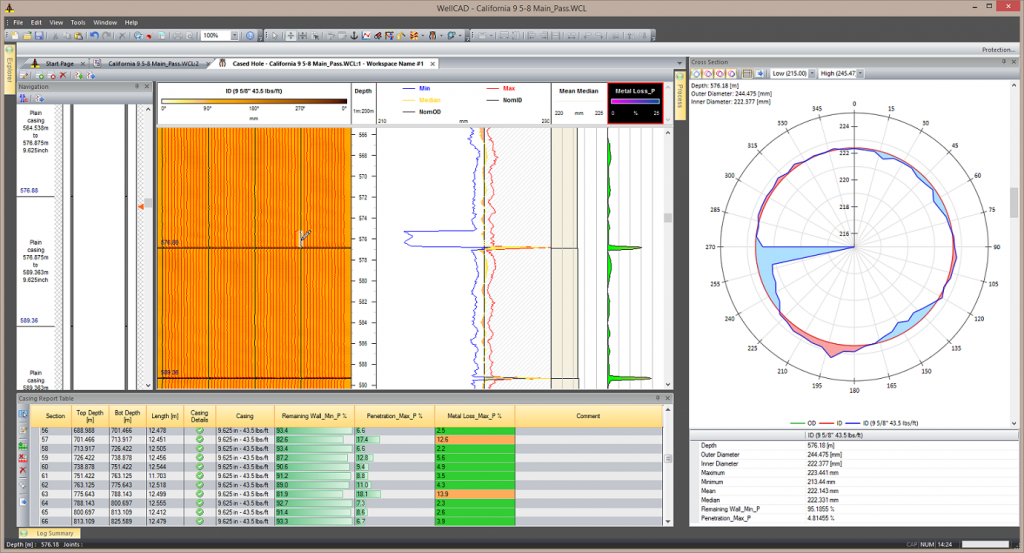

- Casing Integrity module
