MATRIX Data Acquisition System
Data Acquisition System
A versatile data acquisition system compatible with all Mount Sopris probes, past and present.
Description
Mount Sopris offers a versatile data acquisition system — the MATRIX™ data logger. Able to accommodate multiple telemetry systems, the MATRIX logger can be used with all Mount Sopris probes, past and present, as well as many third-party tools. This versatility, combined with its compact size and dependable performance, has made MATRIX a popular logger in the industry.
Features
- Dual DSP (Digital Signal Processors) for data communications, pulse tool signal detection, and analog signal measurement
- Programmable tool power supply with tool voltage and current monitoring
- USB interface to the PC for higher digital tool data rates
- Built to accommodate several generations of single-conductor Mount Sopris tool types as well as single and multi-conductor ALT tools
- Rugged, fault-tolerant electronics with an easy-to-use on-screen LoggerSuite Dashboard
- Wireline and depth-encoder flexibility

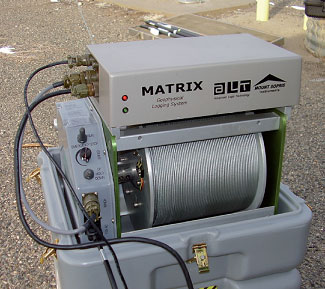

MATRIX Logging Console
The MATRIX Logger acquisition system is based on a modern electronics design in which software-control techniques have been used to the best advantage. The hardware incorporates the latest electronic components with embedded systems controlled via the specially developed LoggerSuite Windows interface program.

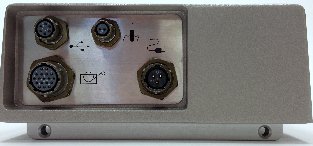

Connections on the side of the MATRIX logger allow users to connect to customer winches (Mount Sopris or others), a data-acquisition computer via USB, and AC power.
