WNA & WFA – Truck-Mounted Winches
Truck-Mounted Logging Winch
Built for deep applications and heavy probe stacks on designated logging vehicles and skids.
Description

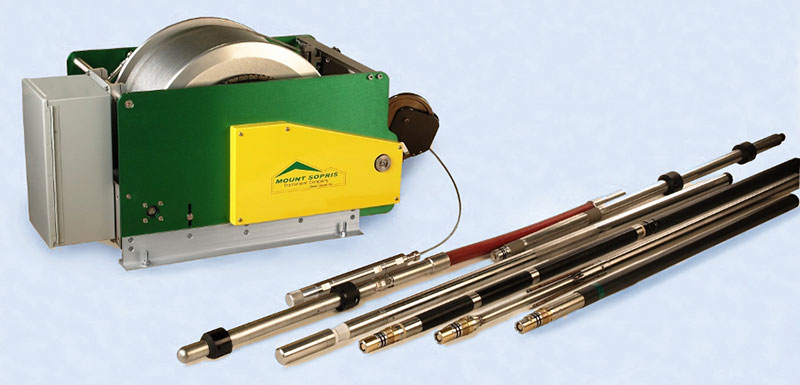

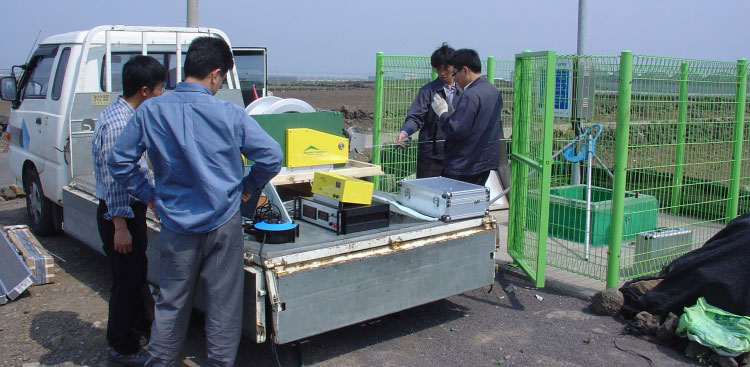

Mount Sopris WNA and WFA truck-mounted winches are rugged, field-tested logging hoists built for designated logging vehicles and skids — meant for deep applications and heavy probe stacks. They deliver the fastest logging speeds and largest lifting capacity in the Mount Sopris line, position a geophysical probe or other tool in a borehole, and support a wide variety of cable types. Each is equipped with a slip ring and connectors through which surface instrumentation communicates with the probe, a precision measuring wheel and depth encoder, and a separate control box for tension, speed, and depth. The WFA is a 2 hp motor upgrade of the 1 hp WNA at the same 1800 m maximum depth.
Features
- Truck-mounted heavy duty design
- Fastest logging speeds and largest lifting capacity
- Automatic level-wind system

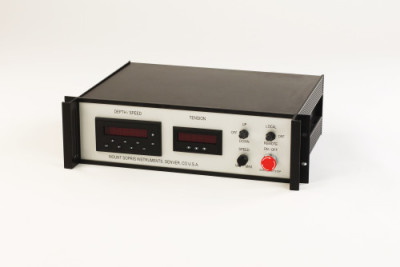

- Separate control box for tension, speed, and depth display
- Tension alarm cutoff
- Remote control
Downloads
-
WNA/WFA Operations Manual Download
Technical Specifications
Drive & Control
| WNA | WFA | |
|---|---|---|
| Motor | 1 hp, PM 90VDC | 2 hp, PM 180VDC |
| Controller | 4 Quadrant ReGen SCR Drive | 4 Quadrant ReGen SCR Drive |
| Speed | 0 to 30 m/min | 0 to 90 m/min |
| Max Load | 345 kg | 363 kg |
Cable
Cable Capacity: WNA — 1000 m of 4.76 mm wireline; WFA — 1800 m of 4.76 mm wireline. Can be spooled with up to 1800 meters — call for details.
Dimensions & Shipping
Shipping Weight: WNA — 277 kg; WFA — 408 kg
Shipping Dimensions: 125 x 89 x 97 cm
