KT 10 Handhled Magnetic Susceptibility used on rock core

The KT‐10 meters are a line of handheld instruments that measure the magnetic susceptibility and/or conductivity of a geological sample or core

The meters are available in circular and rectangular coil designs to measure large or small sized samples, respectively. The KT‐10 meters produce repeatable results, and include features such as corrections for split and full cores, the ability to input information to correlate measurements to their appropriate depths, a built‐in microphone to record voice notes, and the GeoView data management/visualization software. With its compact and rugged design, the KT‐10 meters are ideal instruments for use in the field, core shack, or lab.

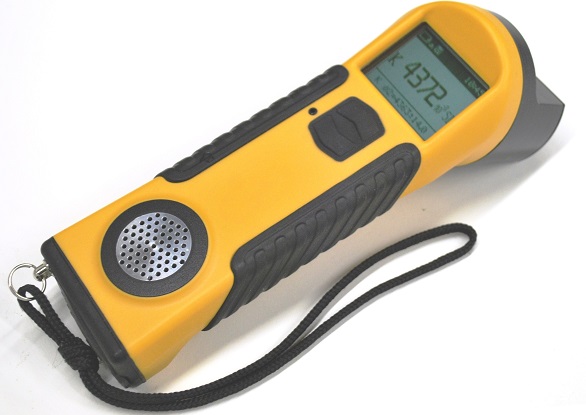

KT 10 V2 Rectangular Coil_small

KT-10 v2 Magnetic Susceptibility Meter (Circular Coil)



Benefits

  • Stand‐alone units with display and data storage.
  • High sensitivity for magnetic susceptibility (10‐7 SI units with KT‐10H models) and conductivity (1 S/m).
  • Two modes of operation: discrete measurements or continuous scanning (20 readings per second).
  • Split and full core corrections for standard drill rod diameters (AQ, BQ, HQ, NQ and PQ) and non‐standard sizes (2.4 to 12 cm)
  • Borehole logging mode to correlate measurement results to their appropriate depths.
  • Data running average and standard deviation values displayed during discrete measurements; data averages and maximum values provided during scanning.
  • Pin mode to measure samples with uneven surfaces (available with circular coil designs only).
  • Built‐in microphone to record voice notes with measurements.
  • GeoVision App to view scanner profiles in real‐time on an Android operated device.
  • GeoView software to organize and visualize data on a PC.
  • Upgrades and support available via the internet

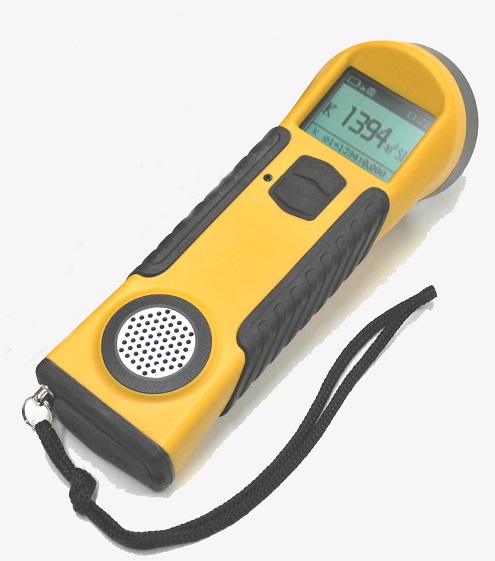

KT 10 v2 Mag Susc Meter Circular coil_small

KT-10 v2
(Rectangular Coil)



Dedicated Magnetic Susceptibility Meters



KT-10 v2 KT-10R v2 KT-10H
Circular coil design Rectangular coil design Circular coil design only
Sensitivity: 10E-6 SI units Sensitivity: 10E-6 SI units Sensitivity: 10E-7 SI units
Measurement range: 0.001 x 10E-3 to 1999.99 x 10E-3 SI units Measurement range: 0.001 x 10E-3 to 1999.99 x 10E-3 SI units Measurement range: 0.0001 x 10E-3 to 1999.99 x 10E-3 SI units
Pin mode available for measuring uneven surfaces Pin mode available for measuring uneven surfaces
KT-10 Plus (Optional) * KT-10R Plus (optional) * KT-10 Plus (Optional) *

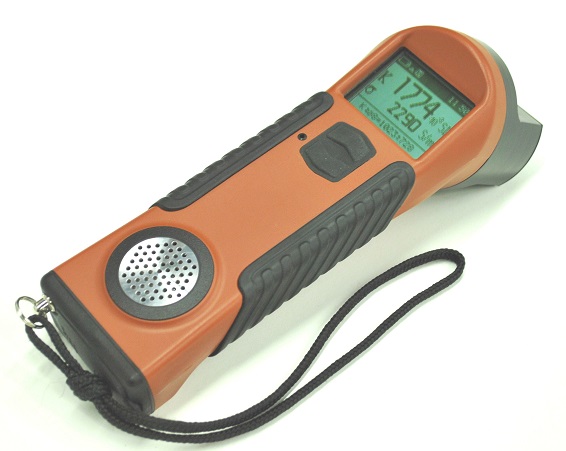

KT 10 SC Rectangular Coil_small

KT-10 S/C Magnetic Susceptibility/Conductivity Meter
(Rectangular Coil)



Dedicated Conductivity Meters



KT-10 C KT-10R C
Circular coil design Rectangular coil design
Absolute conductivity meter, calibrated using multi-point algorithm Absolute conductivity meter, calibrated using multi-point algorithm
Sensitivity: 1 S/m Sensitivity: 1 S/m
Measurement range: 1 to 100,000 S/m Measurement range: 1 to 100,000 S/m
Pin mode available for measuring uneven surfaces
KT-10 Cx (optional) * KT-10R Cx (optional) *

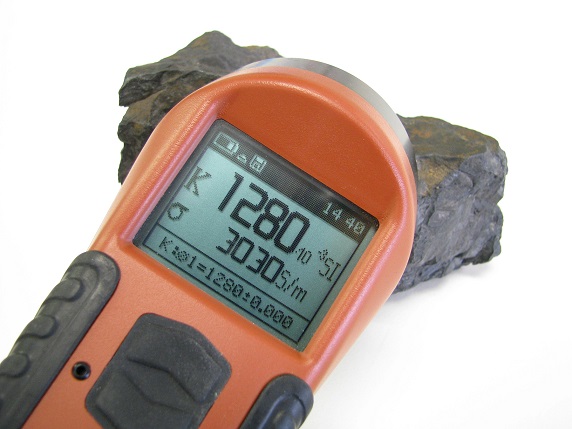

KT-10 SC Circular Coil_small

KT-10 S/C Combined Mag Susc/Conductivity
(Circular Coil)



Combined Magnetic Susceptibility/Conductivity Meters



KT-10 S/C KT-10R S/C KT-10H S/C
Circular coil design Rectangular coil design Circular coil design only
Sensitivity:

  • Magnetic susceptibility 10E-6 SI units
  • Conductivity: 1 S/m
Sensitivity:

  • Magnetic susceptibility 10E-6 SI units
  • Conductivity: 1 S/m
Sensitivity:

  • Magnetic susceptibility 10E-7 SI units
  • Conductivity: 1 S/m
Measurement range:     – Magnetic susceptibility: 0.001 x 10E-3 to 1999.99 x 10E-3 SI units

– Conductivity: 1 to 100,000 S/m

Measurement range:

– Magnetic susceptibility: 0.001 x 10E-3 to 1999.99 x 10E-3 SI units

– Conductivity: 1 to 100,000 S/m

Measurement range:

– Magnetic susceptibility: 0.0001 x 10E-3 to 1999.99 x 10E-3 SI units

– Conductivity: 1 to 100,000 S/m

Pin mode available for measuring uneven surfaces Pin mode available for measuring uneven surfaces
KT-10 Plus S/C (optional) *

KT-10 S/Cx (optional) *

KT-10 Plus S/Cx (optional) *

    KT-10 Plus S/C (optional) *

    KT-10R S/Cx (optional) *

    KT-10R Plus S/Cx (optional) *

    KT-10H Plus S/C (optional) *

    KT-10H S/Cx (optional) *

    KT-10H Plus S/Cx (optional) *



    Geoview Software

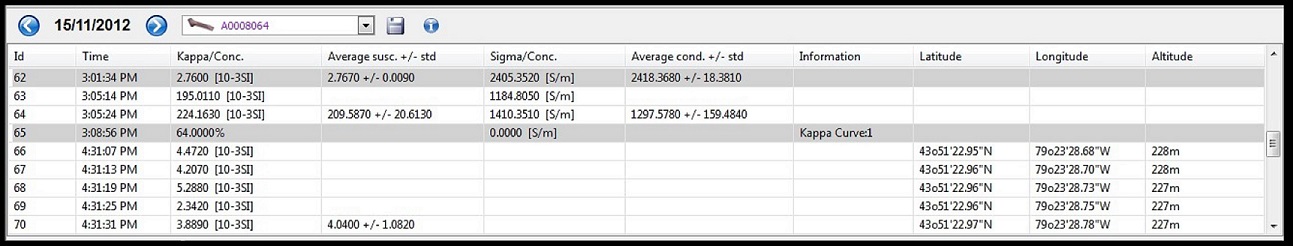

    Geoview Software_Data Organization_small

    GeoView is an easy-to-use data management and visualization software program that is compatible with all Windows operating systems.

    It enables users to download, store and view a KT-10 meter’s data on a PC and export it to Excel.  Data is organized by date or by instrument serial number, when there are data from multiple meters. Averaged readings, voice notes, and GPS positions (when paired with a Bluetooth GPS unit) can also be reviewed.

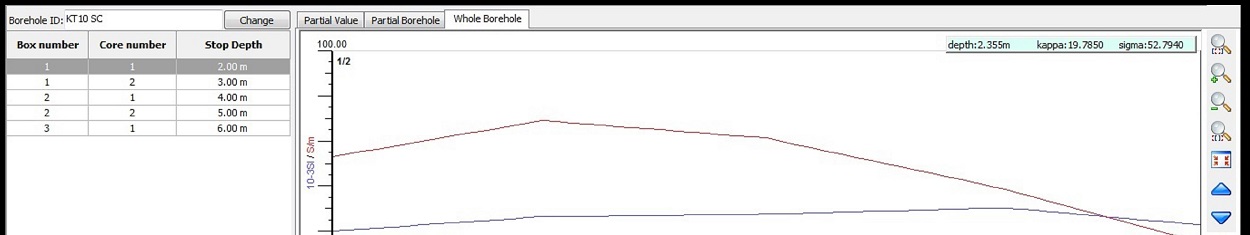

    Geoview Software_Data Visualization_small

    The software can also be used as a data visualization tool.  Numerical values from discrete measurements are displayed in a table format; data from scanned measurements are displayed as a graph.



    Options

    • Upgrade a dedicated KT-10 v2 or KT-10 C to a KT-10 S/C Magnetic Susceptibility/Conductivity Meter, and a KT-10H to a KT-10H S/C.
    • “Plus” Option for Magnetic Susceptibility Measurements:
      • Increase measurement range to 10 SI units.
      • Obtain magnetite iron ore concentration estimates (%) directly from the display
    • “Cx” Option to increase conductivity measurement range to 200,000 S/m
    • Magnetic Susceptibility Calibration Pads
      • Two calibration pads are available to recalibrate the magnetic susceptibility measurements or to verify the meter’s readings. The calibration pads are available in low and high (“Plus” options only) susceptibility ranges.Magnetic Susceptibility Calibration Pads Table

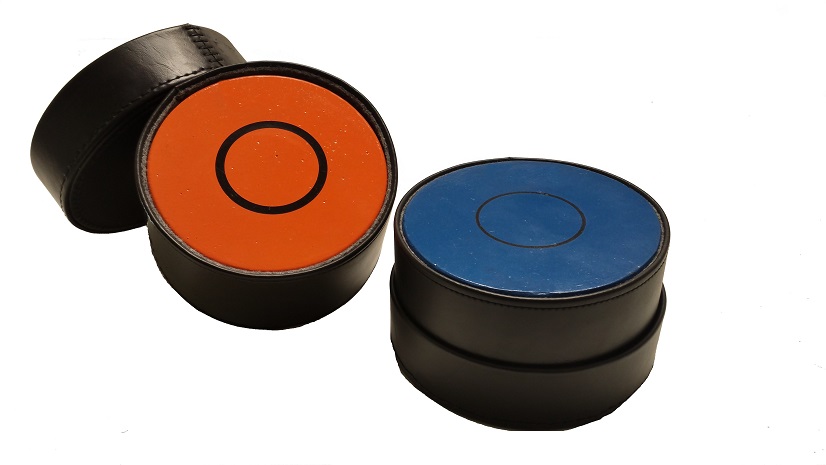

        Magnetic Susceptibility Calibration Reference Pads Handheld Meter

        Magnetic Susceptibility Calibration Pads

    • Conductivity Reference Pads
      • Three reference pads are available to verify conductivity measurements. Each pad has been independently tested using different methods for measuring conductivity (AC, DC and impedance bridges).  The reference pads are available with low, medium and high conductivity ranges.Magnetic Susceptibility Calibration Pads Table

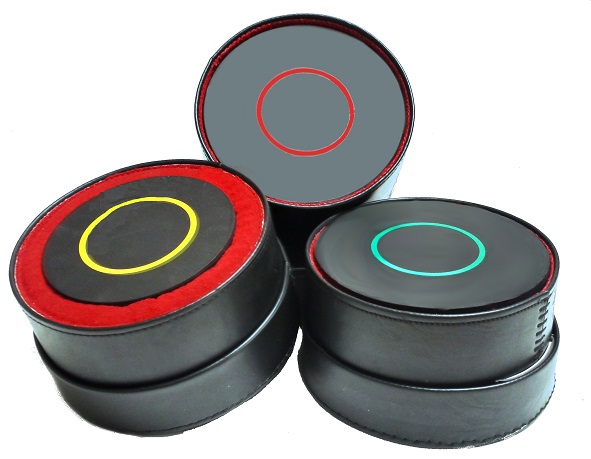

        Conductivity Reference Pads Handheld Sensor

        Conductivity Reference Pads



    Specifications

    Operating Frequency: 10kHz

    Measurement Frequency: 20 readings per second in Scan Mode, storing 4 averaged readings per second.

    Display: High contrast LCD display with 104 x 88 pixels

    Memory: 4 GB: 4,000 total records stored *

    * 4,000 scanner measurements, with up to 480 data points per record (total of 1,920,000 individual data points)

    Or

    * 4,000 discrete measurements, with 120 seconds of voice notes per reading.

    Note: discrete and scan records can be combined.

    Control: One button with up / down functionality

    Data Input/Output: USB and Bluetooth (GPS/phone pairing)

    Power Supply: 2 ‘AA’ batteries (alkaline or rechargeable)

    Battery Life: Up to 2,000 measurements without voice recorder while using rechargeable batteries

    Operating Temperature Range: -20°C to 60°C

    Meter Dimensions: 200 x 57  x 32 mm

    Coil Dimensions: Circular Coil: 65 mm (diameter), Rectangular Coil: 65 mm (length) x 30 mm (width)

    Weight: 0.33 kg with 2 ‘AA’ alkaline batteries installed



    Instrument Contents

    KT-10 v2, KT-10R v2 & KT-10H KT-10 C & KT-10R C KT-10 S/C, KT-10R S/C & KT-10H S/C
    (1) KT-10, KT-10R or KT-10H Meter

    (2) Pins (circular coil designs only)

    (2) AA alkaline batteries

    (1) USB data transfer cable

    (1) Carrying pouch with foam Insert

    (1) GeoVision Android App

    (1) GeoView software CD

    (1) Operations manual

    (1) Quick reference guide

    (1) KT-10 C or KT-10R C Meter

    (2) Pins (circular coil designs only)

    (2) AA alkaline batteries

    (1) USB data transfer cable

    (1) Carrying pouch with foam Insert

    (1) GeoVision Android App

    (1) GeoView software CD

    (1) Operations manual

    (1) Quick reference guide

    (1) KT-10 S/C, KT-10R S/C or KT-10H S/C Meter

    (2) Pins (circular coil designs only)

    (2) AA rechargeable batteries & charger

    (1) USB data transfer cable

    (1) Carrying pouch with foam Insert

    (1) GeoVision Android App

    (1) GeoView software CD

    (1) Operations manual

    (1) Quick reference guide

    (1) Rugged transportation case

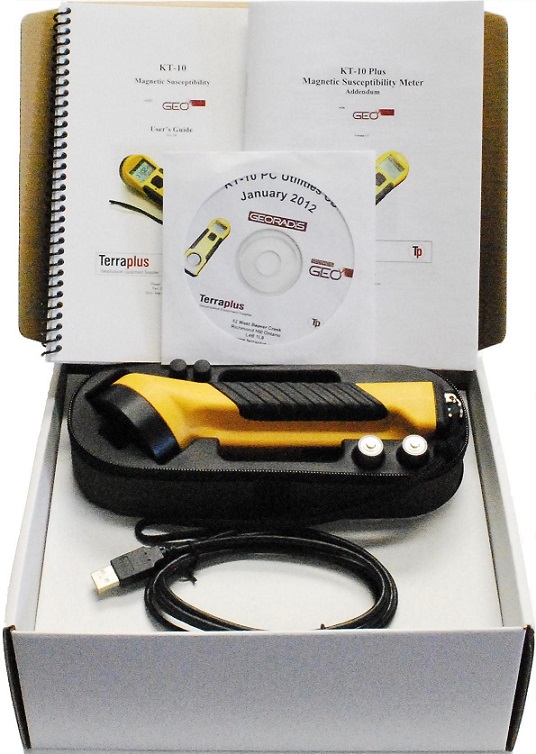

    KT-10 v2 Contents_small KT-10 C Contents KT-10 SC Contents
